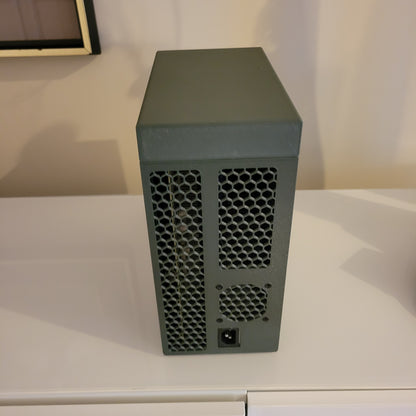

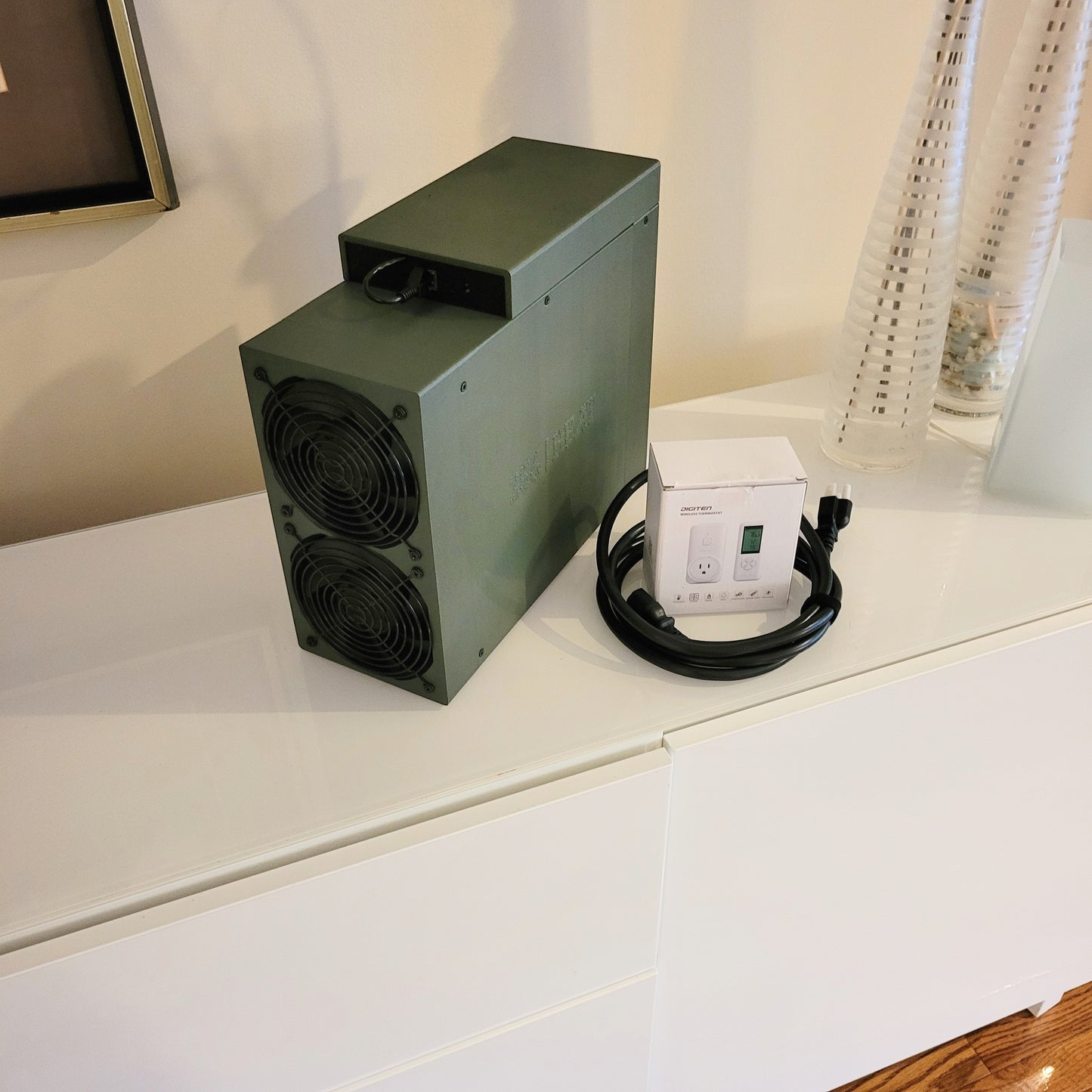

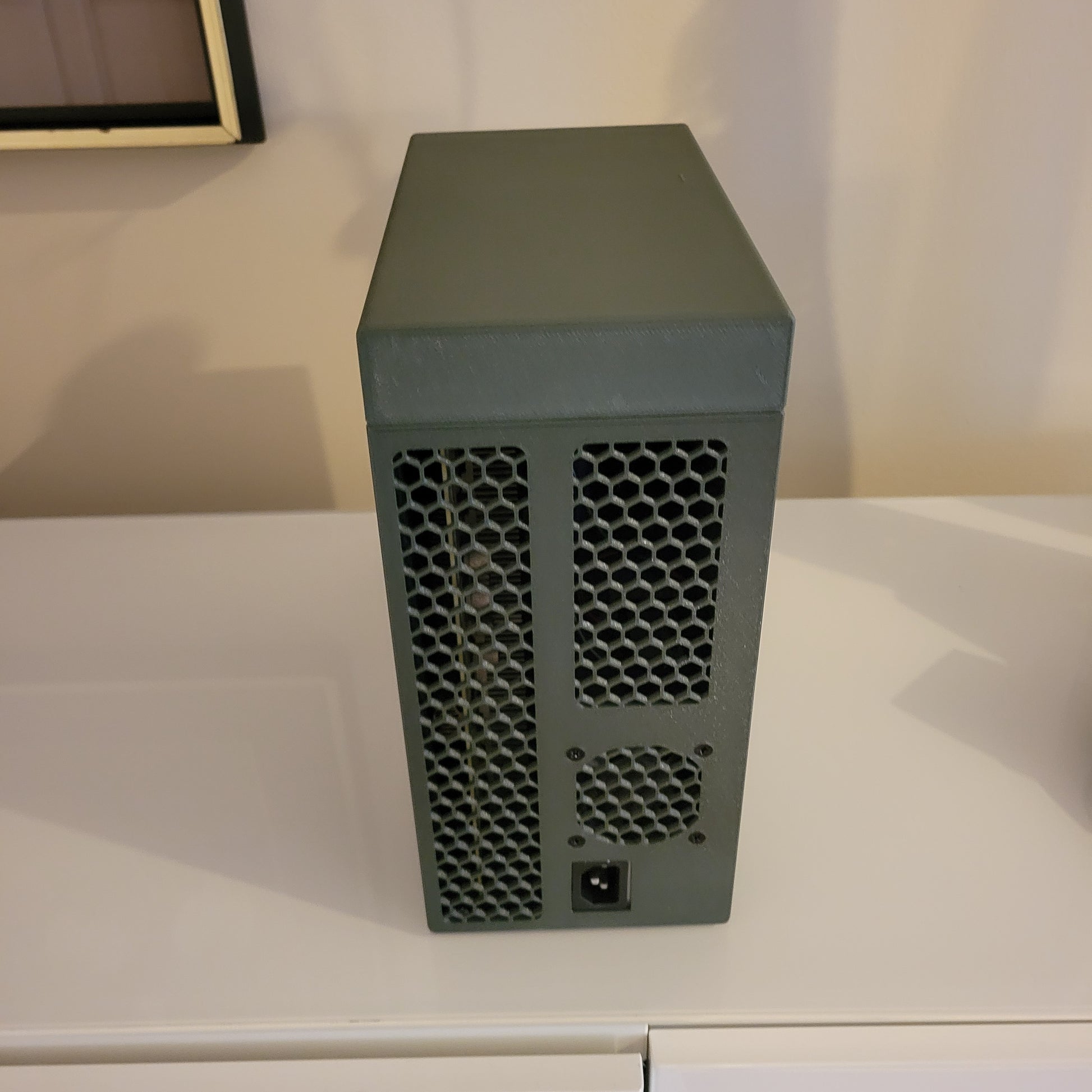

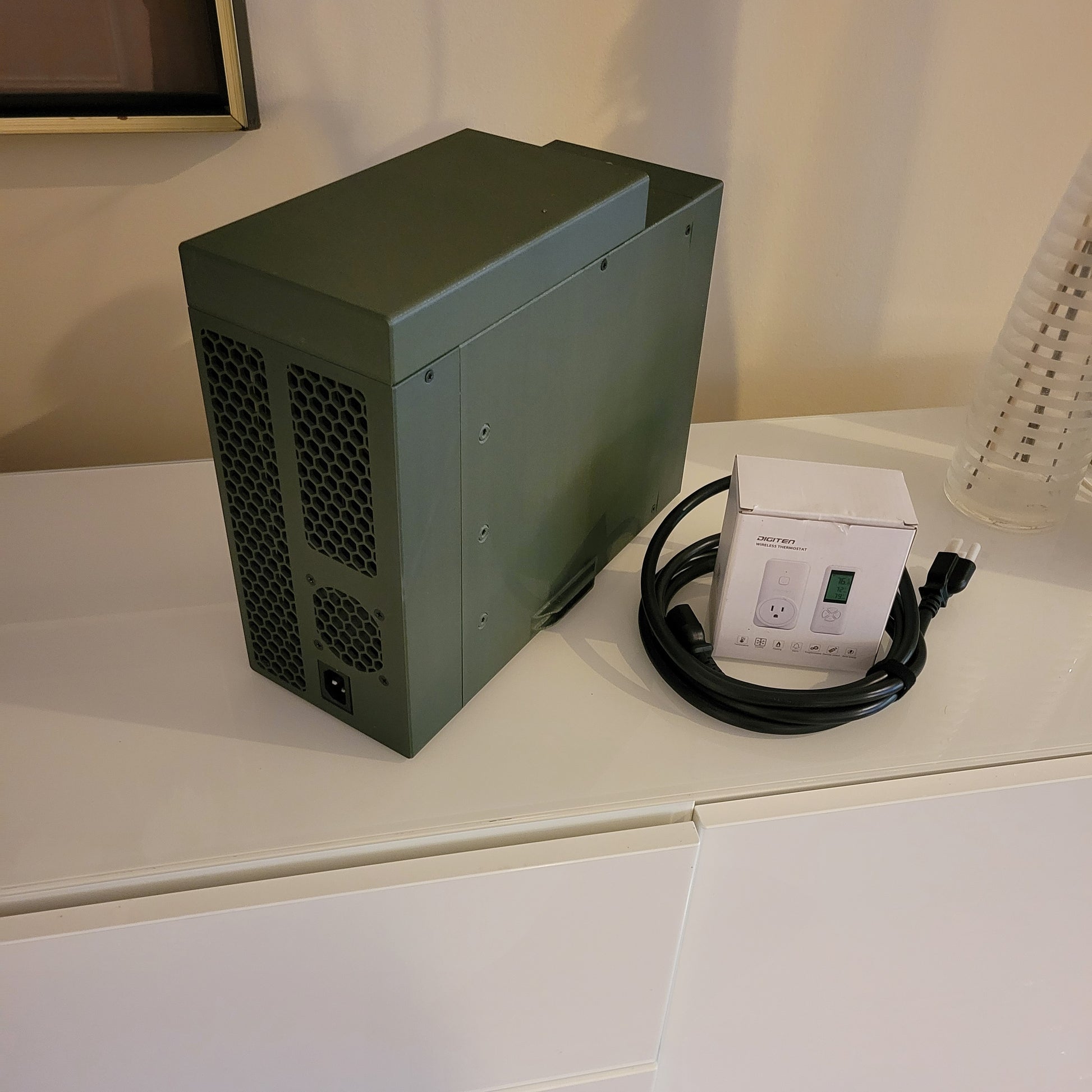

This is the quiet ENC-1 miner/hashrate heater, but without a hashboard. You plug-in your own Bitmain hashboard.
Compatible with the following hashboard models:
-S19 *not compatible with S19 88-chip hashboard*
-S19Pro
-S19JPro
-S19KPro
-S19XP
-S21

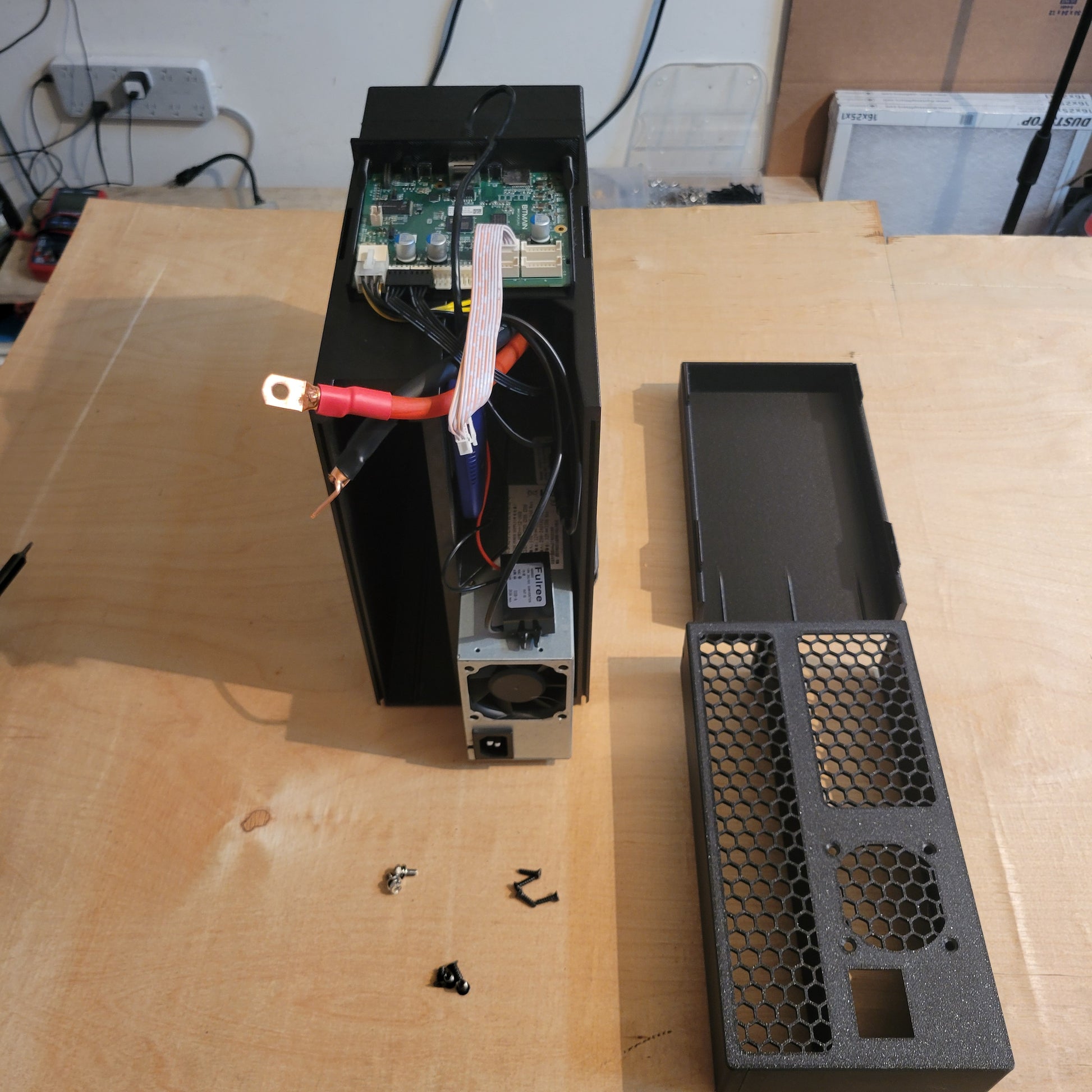

Hashboard installation/swap demo

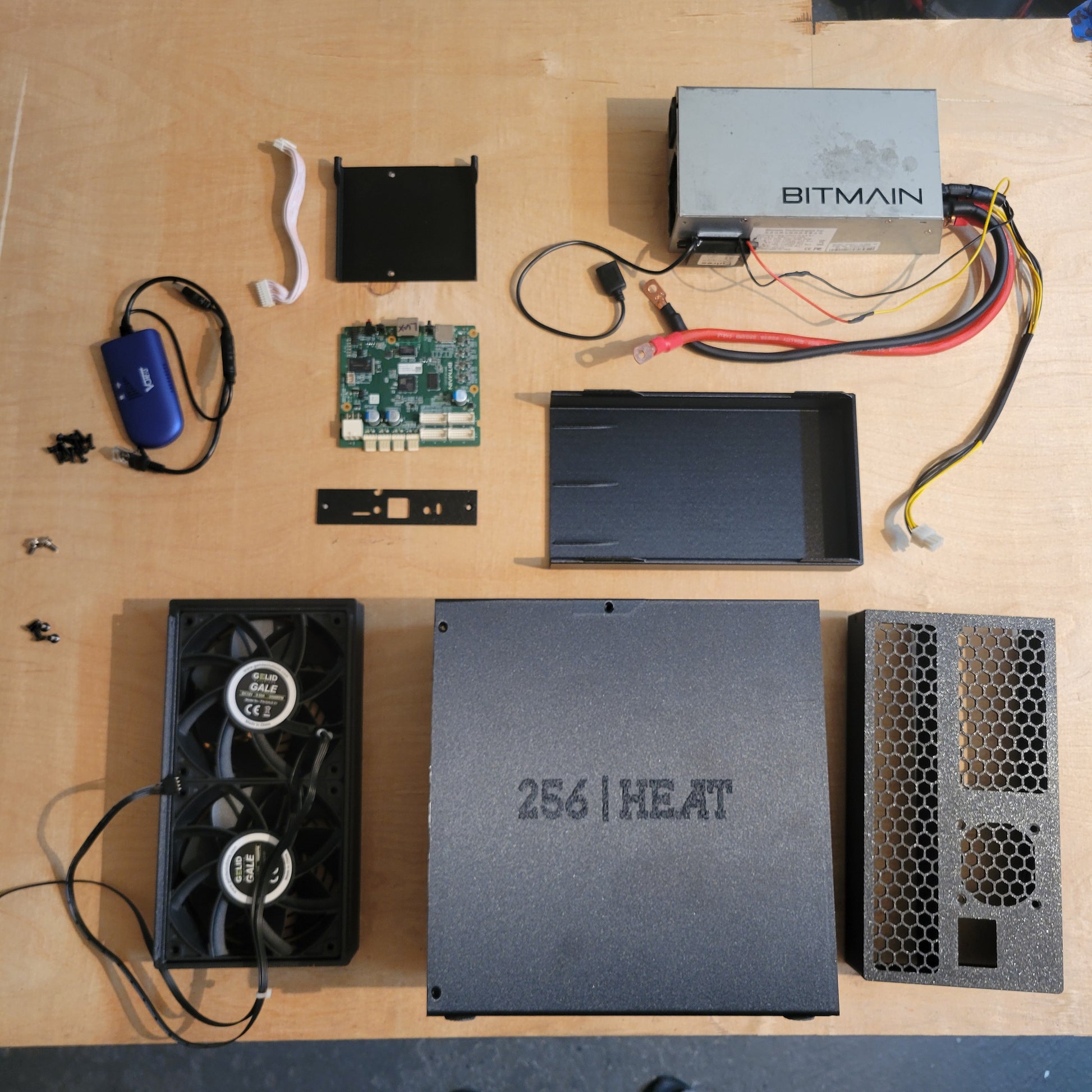

Full Bill of Materials:
1. ENC-1 3D Printed Enclosure (PETG-CF)
2. Wall Mount Cleats (not shown)

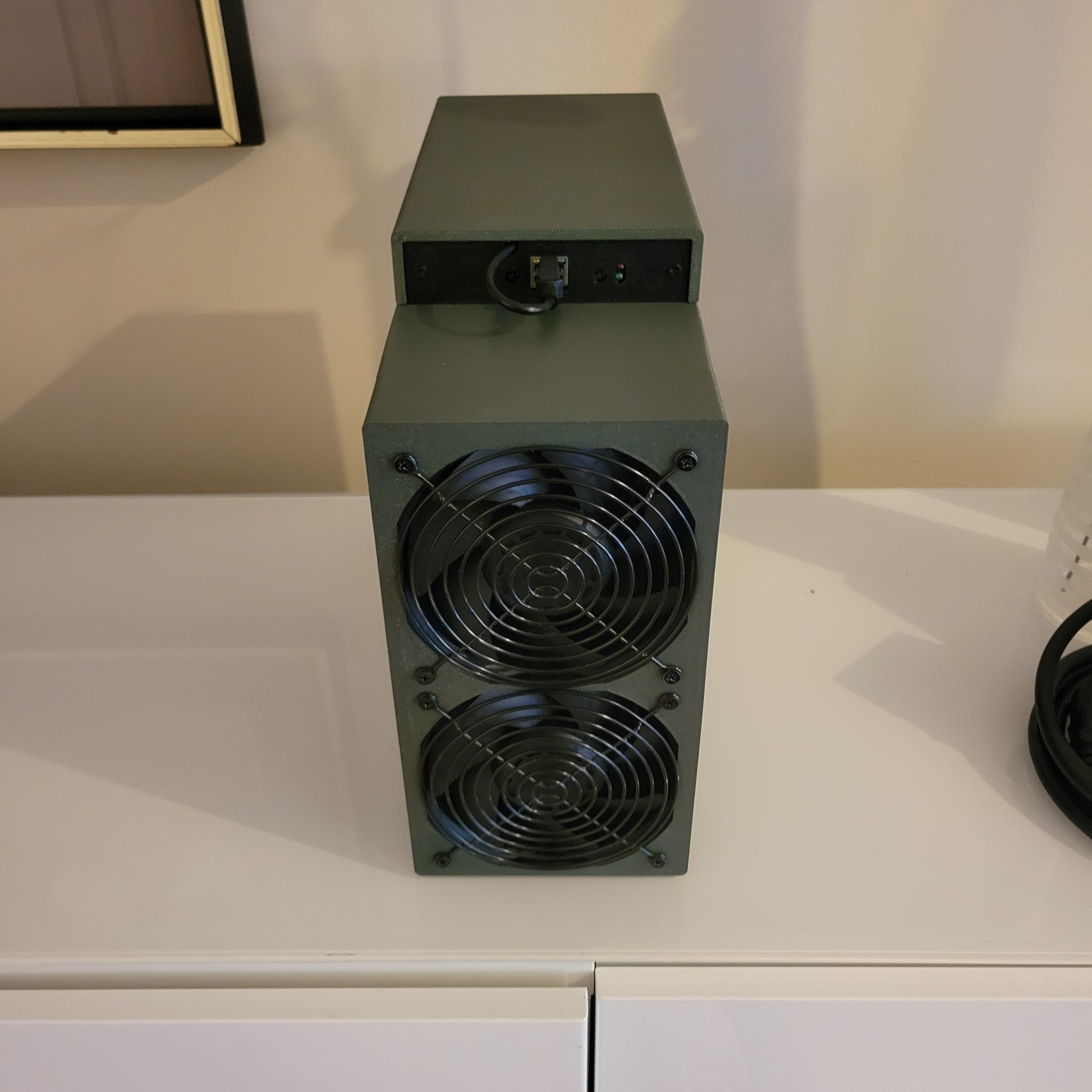

3. 2x Gelid GALE 3500RPM fans
4. C87 (XILINX) control board (LuxOS Firmware Installed)
5. APW3++ Power Supply (12.5 DCV) (refurbished)
6. Vonets VAP11G-300 Wi-Fi Repeater
7. 12V/24V to USB 5V Step Down Voltage Converter
8. Hashboard ribbon cable
9. 4AWG Power cables with lugs

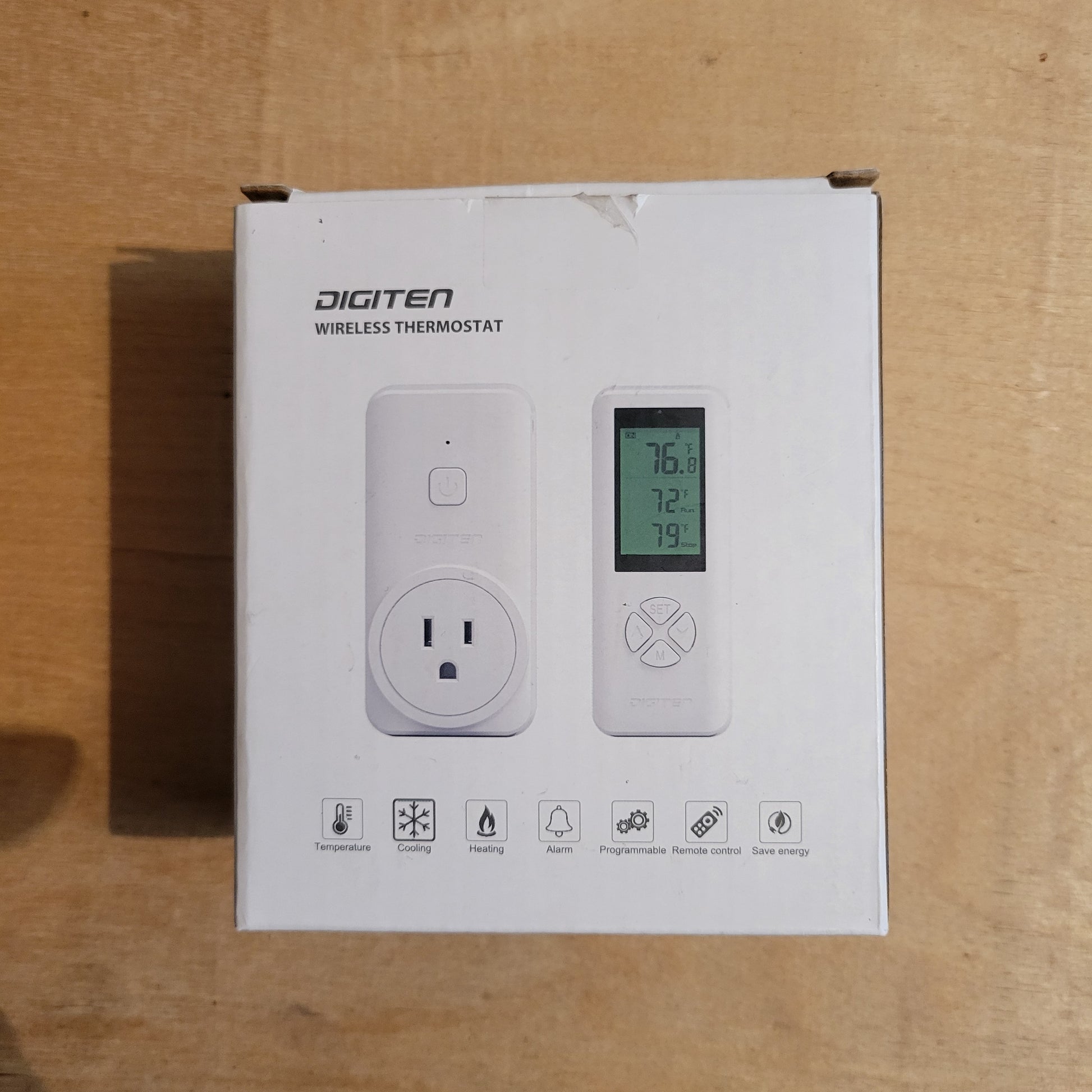

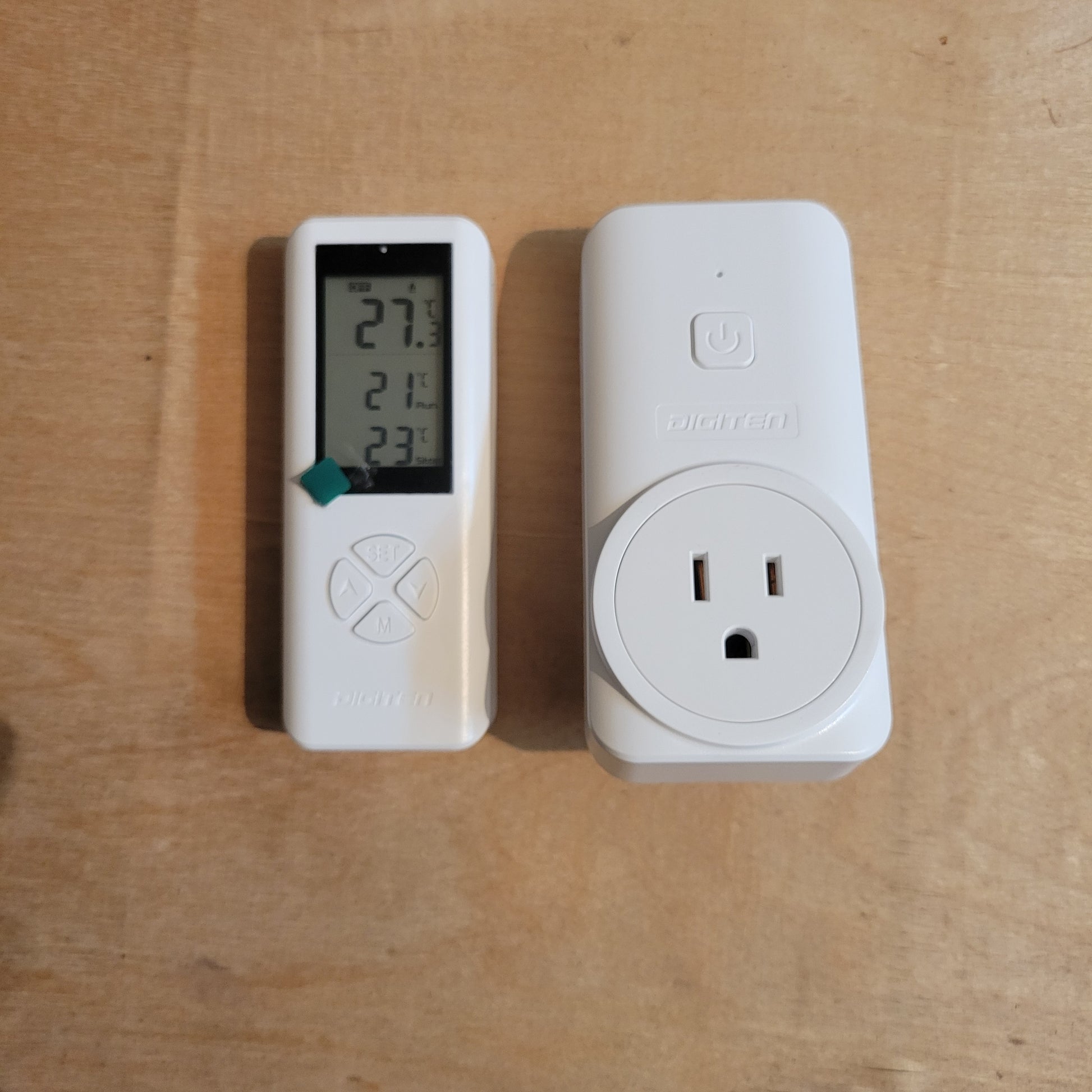

10. Digiten Wirelesss Thermostat Outlet

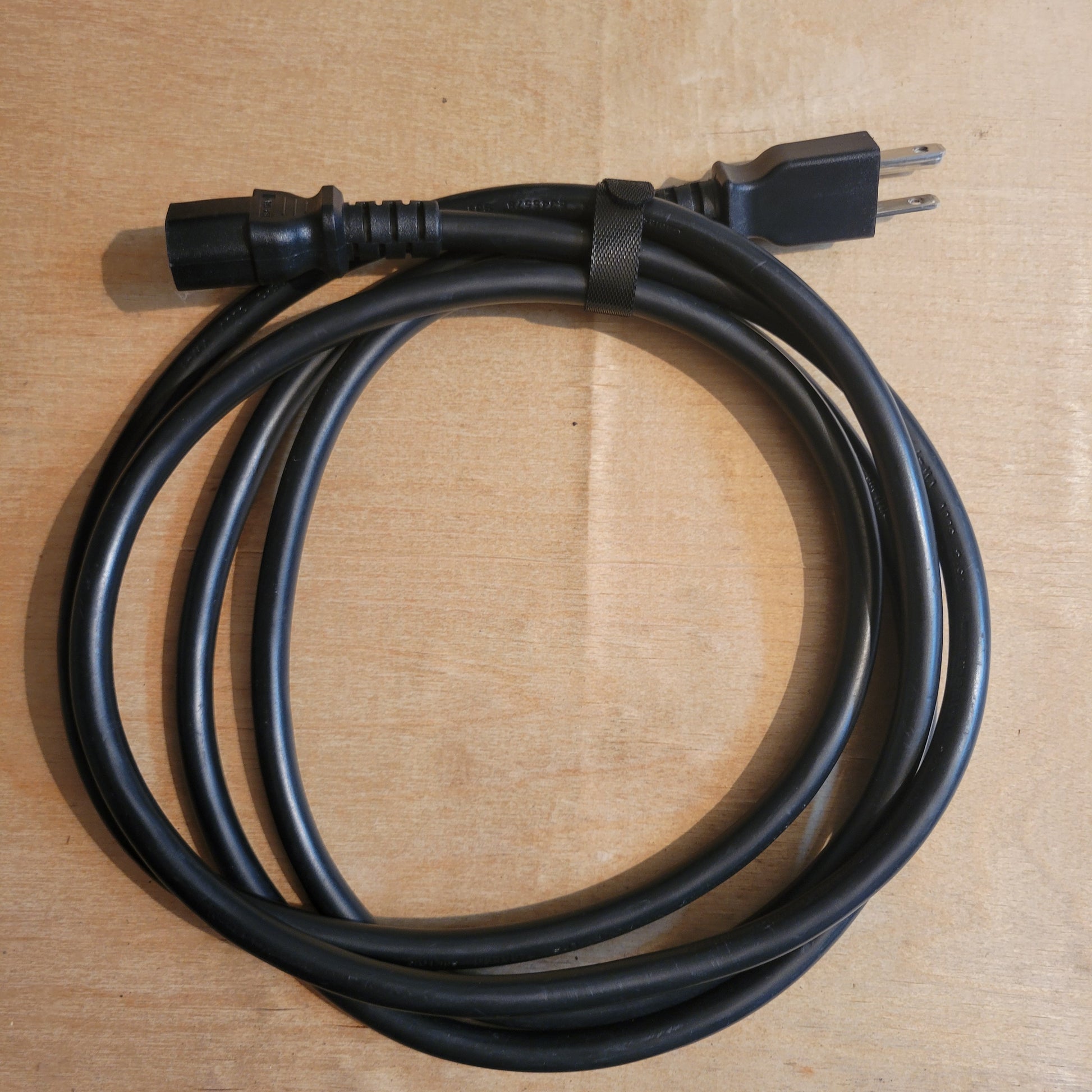

11. 14AWG NEMA 5-15 power cable
12. 8x 120mm fan screws
13. 4x PSU fan screws
14. 12x Steel Thread Rolling Screw for Plastic, Black Oxide Finish, 82 Degree Flat Head, Star Drive, 6-19 Thread Size, 1/2" Length
S19 Kpro Single Hashboard Specs.
This unit allows miners to take advantage of the incredible prices on used ASIC mining hardware as well as the pubco. AI pivot.
This also allows miners that remote-hosted their rigs and have since repatriated their hardware, but don't have the electric infrastructure (nor the acoustic tolerance) to run their rigs in the home.
Vonets Wi-Fi onboard so you just have to plug-in the device, set up the Wi-Fi (5 minutes) and get paid to make heat.
The ENC-1 was designed to skirt the fast-paced mining hardware environment. The S19, S19J Pro, S19K Pro, S19 XP and S21 boards will quietly run on these hashrate heaters without having to upgrade any other components or firmware. The power supply is tuned to 12.5V so please select a preset that most closely reflects the 12.5V output voltage from the APW3++ power supply.
Happy hashing!
